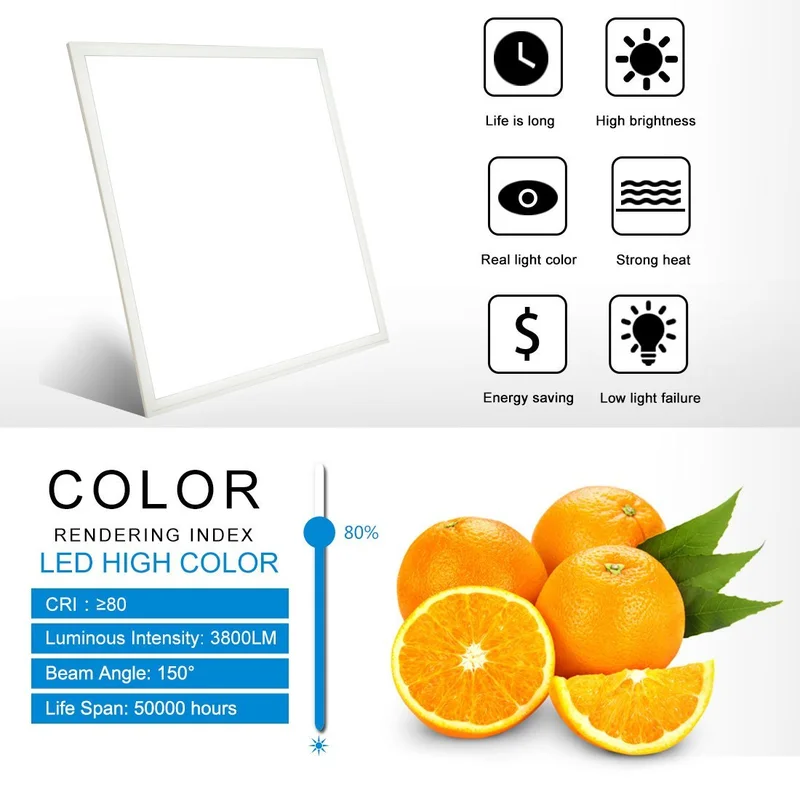

2’x2′ (595x595mm) 40W LED Panel Light in 0.39” (10mm) Thick White Trim Flat Sheet Panel Lighting Board Super Bright Ultra Thin Glare-Free

Description

2’x2′ (600×600 mm) LED Panel Light White Color in 0.39” (10mm) Thick Low Profile White Trim Flat Sheet Panel Lighting Board Super Bright Ultra Thin Glare-Free

Basic Parameter
Item NO.:HK-PLG-2×2-X
Dimension:595mm x 595mm x 10mm
LED type: 2835SMD
Material: Aluminium + PMMA
Input Voltage: 100-240VAC
Output voltage: 28-36V~1.1A
Working temperature:-10°C~40°C
Installation method:Embedded/Hanging/Ceiling Surface Fixed
IP rate:IP41
N.W.(±0.1Kg):3.3Kg

Technical Parameter
LED Power:40 Watt
Beam Way: Beam at two sides

Photoelectricity Parameter
CCT .: 3000K-6500K
Flux.(±10%):3800lm
Input Power: 40W
Light Efficiency(±10%): >90LM/Watt
CRI: Ra>80
Lighting Angle: 150°
PF: >0.9

Installation Method : Recessed into Ceiling

When purchasing panel lights, please confirm the installation method.
If it’s a recessed installation, please specify the type of ceiling.
See the images below:
a. Recessed in a drywall ceiling
b. Recessed in an aluminum composite panel ceiling
c. The ceiling is a single suspended ceiling panel; additional holes need to be drilled to install panel lights.

If no specific request, usually we will send the LED panel light for “a” condition.

More Installation Method:

1. Pendant

2. Embedded

3. Ceiling surface fixed （need mounting bracket, not included, need purchase separately）
