Description

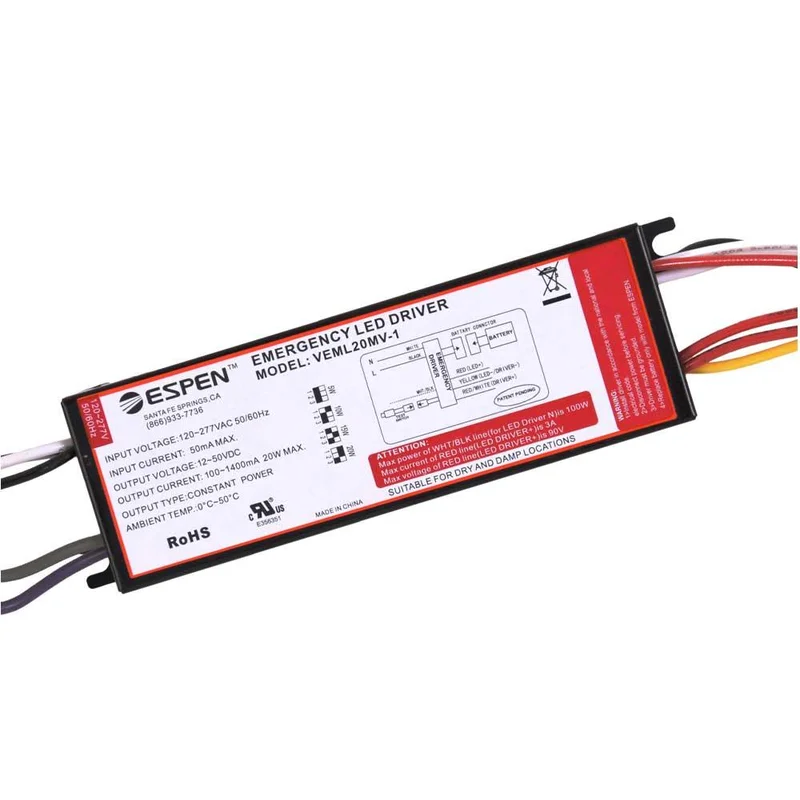

Espen VEML20MV-1 20W Emergency Driver — 12-50V DC
The Espen VEML20MV-1 is a robust 20W Emergency Driver designed to work seamlessly with LED drivers, enabling LED fixtures to operate during power outages. With an output voltage of 12-50V DC, it ensures reliable emergency lighting for a minimum of 90 minutes. This unit is ideal for both new installations and retrofit applications, featuring a non-dimmable design and a multi-voltage input of 120-277V. The durable metal enclosure houses a maintenance-free LiFePO4 battery, ensuring long-lasting performance.
Key Features
- Power Output: Delivers a constant 20W output for emergency lighting.
- Output Voltage: Safety extra low voltage range of 12-50VDC.
- Dimming: Non-dimmable design for consistent emergency operation.
- Input Voltage: Supports 120-277VAC, 50/60Hz for flexible installation.
- Dimensions: Compact size of 5.52 in. L x 1.65 in. W x 1.00 in. H.
- Enclosure Type: Sturdy metal construction for dry-rated environments.
- IP Rating: Suitable for dry locations.
- Class 2: Compliant with Class 2 safety standards.
- Certifications: UL and cUL 924 listed, FCC Part 15 Class B, RoHS Compliant.
Physical Design & Installation
The metal enclosure provides robust protection, suitable for dry-rated environments. It includes installation hardware for easy setup.
Dimming & Controls
Designed for non-dimmable operation, ensuring consistent performance during emergency mode. Compatible with switched or unswitched fixtures.
Performance & Build
Features a maintenance-free LiFePO4 battery with a 24-48 hour recharge time, providing 90 minutes of emergency power. Compliant with Class 2 and UL standards.
Typical Applications
- Commercial LED lighting systems
- Office emergency lighting
- Retail lighting solutions
- Industrial LED fixtures
