5W LED Emergency Driver, 40-100V DC Output

Description

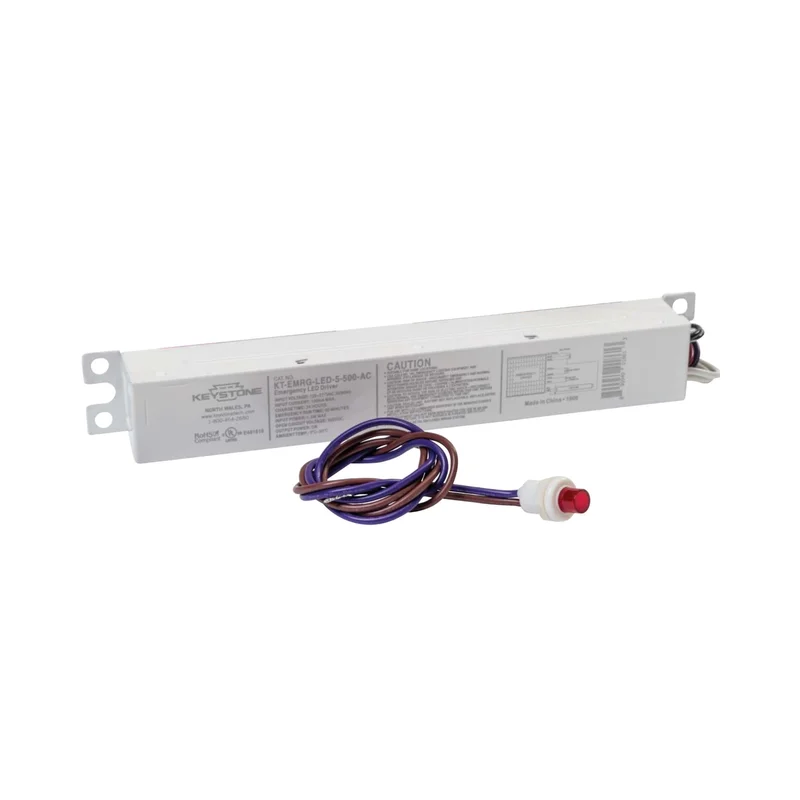

Keystone Technologies KT-EMRG-LED-5-500-AC 5W Emergency Driver — 40-100V DC

The Keystone Technologies KT-EMRG-LED-5-500-AC is a reliable 5W Emergency Driver designed to provide consistent power to LED loads during emergency situations. With an output voltage range of 40-100V DC, this driver ensures optimal performance for emergency lighting applications. It operates on a wide input voltage range of 120-277V AC, making it versatile for various installations. This driver is non-dimmable and features a constant wattage design, ensuring a steady output during emergencies. The durable metal housing provides protection in damp-rated environments.

Key Features

• Power Output: Provides a maximum output power of 5W, suitable for emergency lighting applications.
• Input Voltage: Compatible with 120-277V AC, accommodating a wide range of electrical systems.
• Output Voltage: Delivers 40-100V DC, ensuring reliable performance for LED loads.
• Dimming: Non-dimmable design, optimized for emergency use.
• Dimensions: Compact size of 9.5 in. L x 1.29 in. W x 1.22 in. H for easy integration into fixtures.
• Enclosure Type: Sturdy metal housing for enhanced durability and protection.
• IP Rating: Suitable for damp-rated environments, ensuring reliable operation.
• Class 2: Complies with Class 2 safety standards for peace of mind.
• Certifications: UL Listed and evaluated to UL 924 requirements for emergency lighting.

Physical Design & Installation

The driver features a robust metal housing with a one-piece design, ensuring durability and ease of installation. It includes standard side exit wire leads for straightforward wiring.

Dimming & Controls

This driver is non-dimmable, specifically designed for emergency lighting applications. It operates efficiently with an input voltage range of 120-277V AC and provides a constant output of 5W.

Performance & Build

Equipped with a Li(NiCoMn)O2 battery, this driver offers 90 minutes of operation in emergency mode. It meets UL 924 requirements and is UL Listed, ensuring safety and reliability.

Typical Applications

• Commercial emergency lighting systems
• Office building emergency fixtures
• Industrial safety lighting
• Public facility emergency illumination
