American Lighting LED 5 Complete Under Cabinet Light — Bronze & Selectable CCT

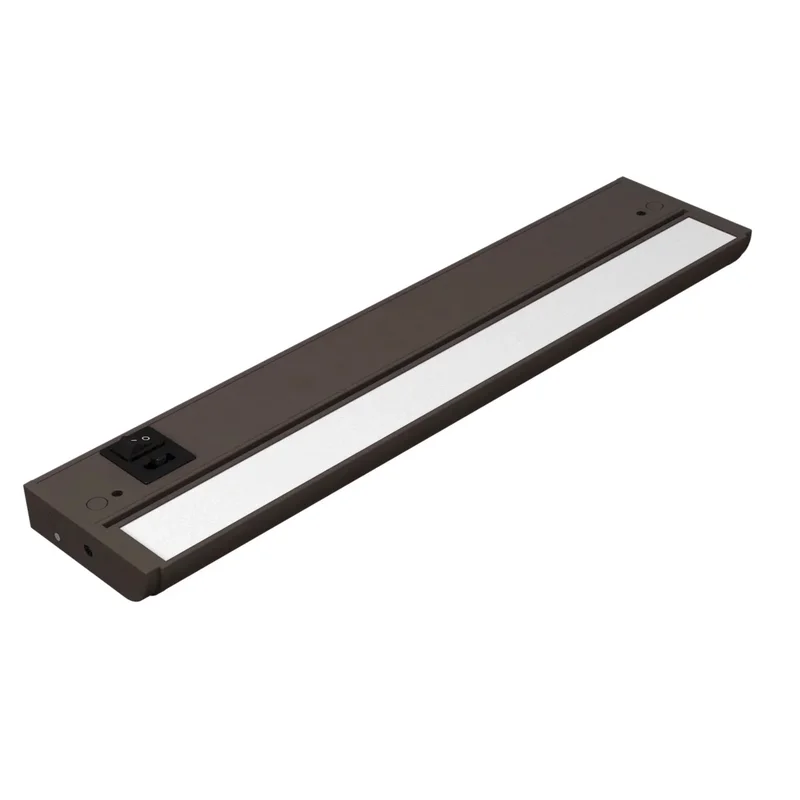

The American Lighting 5LCS-32-5CCT-DB is a bronze-finished under cabinet light, measuring 32 inches in length and 3.63 inches in width. This fixture features an integrated LED light source with selectable color temperatures ranging from 2700K to 5000K, operating at 120V.
Key Features
- Dimensions: 32in L x 3.63in W x 1in H for optimal under cabinet fit.
- Voltage: 120V AC input for standard electrical systems.
- Wattage: Consumes up to 16.5W for energy-efficient operation.
- Lumens: Provides up to 1050 lumens for bright illumination.
- Color Temperature: Field-switchable 5CCT from 2700K to 5000K.
- CRI: High color rendering index of 90+ for accurate color representation.
- Lifespan: Rated for 35,000 hours of use.
- Mounting: Surface mount with a low-profile design.
- Dimming: Compatible with TRIAC dimmers for 10-100% dimming range.
- Beam Angle: Wide 120° beam angle for broad light distribution.
Core Design & Profile
This under cabinet light features a slim, surface-mount design with a bronze finish. It is cETLus listed for dry locations, ensuring safe installation in kitchens and workspaces.
LED Illumination & Performance
With a lumen output of up to 1050 and a power consumption of 16.5 watts, this fixture provides efficient lighting. The selectable CCT feature allows for customization of light color from warm to cool tones.
Power, Wiring & Linkability
The fixture is designed for direct wiring at 120V. It includes convenient rear access for easy wiring and features knockouts for streamlined installation. Linking capabilities allow for continuous runs.
Where This Fixture Works Best
- Kitchen under cabinets
- Office workstations
- Retail display shelves
- Workshop task areas
- Residential utility rooms
What’s Included
- 3/8in clamp connector
- Inline/direct connector
- Two captive mounting screws
