Description

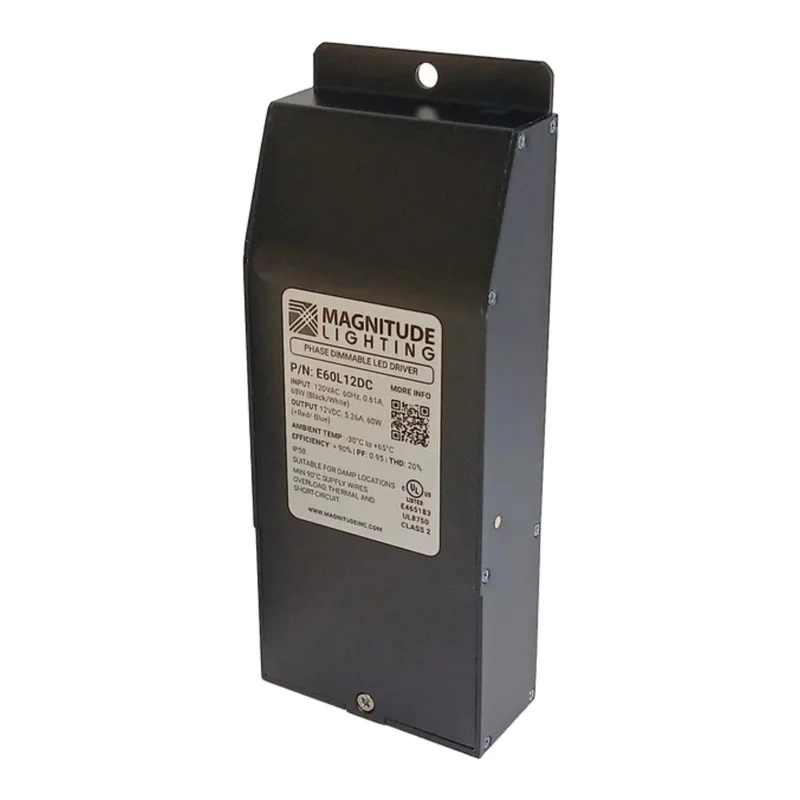

Magnitude Lighting E-Series 60W LED Driver — 12V DC
E60L12DC is a Magnitude Lighting LED Driver rated 60W with 120VAC input and 12V DC Constant Voltage output. It is forward-phase (TRIAC) dimmable down to 1% and is UL8750 Class 2. The compact aluminum housing includes an Integrated Junction Box with knockouts for streamlined installation.
Key Features
- Power: 60W maximum load
- Input Voltage: 120VAC ± 10%, 50/60Hz
- Output Voltage: 12.0VDC at max load
- Output Current: 5.00A at max load (12VDC)
- Dimming: Forward-phase (TRIAC) dimmable to 1%
- Minimum Load: 8W
- Dimensions: 6.77 in. L x 2.67 in. W x 1.30 in. H
- Enclosure Type: Integrated Junction Box with integrated wiring compartment and two 1/4 in. trade size (3/8 in.) knockouts
- IP Rating: NEMA 3R
- Certifications: UL8750, Class 2
Physical Design & Installation
Compact aluminum case with powder coat finish designed for easy concealment. The driver includes an Integrated Junction Box (integrated wiring compartment) and two 1/4 in. trade size (3/8 in.) knockouts to bring in line voltage and route low-voltage output wiring.
Dimming & Controls
Supports forward-phase (TRIAC) dimming and is specified to dim down to 1% when paired with compatible forward-phase dimmers. For stable dimming performance, maintain the specified minimum load of 8W on the driver output.
Performance & Build
Designed for high efficiency (>90% at 12VDC) and low operating temperature. Protection includes short circuit and over-voltage auto-reset. UL8750 Class 2 construction and NEMA 3R enclosure support demanding residential and light commercial installations.
Typical Applications
- 12V LED tape and linear accent lighting
- Under-cabinet and millwork lighting
- Signage and display lighting
- Indoor or outdoor installations where a NEMA 3R driver is required
