Description

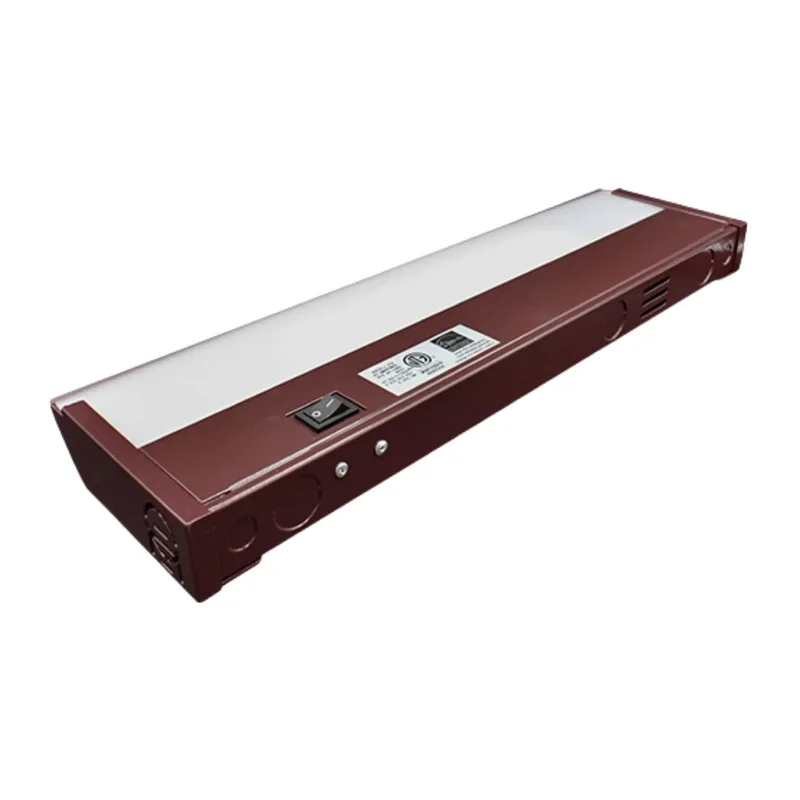

GM Lighting TunableTask Under Cabinet Light Bar — Bronze & Selectable CCT
The GM Lighting UCTUN-8-BZ is a bronze under cabinet light bar designed for versatility and efficiency. This fixture features a powder-coated aluminum housing and measures 8 inches in length. It operates on 120V and provides a selectable CCT range from 2700K to 5000K, delivering up to 430 lumens.
Key Features
- Selectable CCT: Offers 2700K, 3000K, 3500K, 4000K, and 5000K options for customized lighting.
- Dimensions: Compact design with 8 in. length, 3.63 in. width, and 0.94 in. height.
- Voltage: Operates on 120V, eliminating the need for a remote power supply.
- Wattage: Consumes only 6 watts for energy efficiency.
- Lumens: Provides up to 430 lumens for bright illumination.
- CRI: High color rendering index of 90+ for accurate color representation.
- Construction: Durable powder-coated aluminum housing with a polycarbonate lens.
- Dimming: Compatible with Triac dimmers for adjustable lighting.
- Linkability: Connect multiple units using included connectors for extended runs.
- Mounting: Easy installation with captive mounting screws and Wago connectors.
Core Design & Profile
This under cabinet light bar features a low-profile design with a depth of under 1 inch, making it ideal for discreet installations. The housing is made of powder-coated aluminum, and it includes a polycarbonate lens for even light distribution. It is dry rated for indoor use.
LED Illumination & Performance
The fixture delivers up to 430 lumens with a power consumption of 6 watts. It offers a high CRI of 90+ and selectable CCT options ranging from 2700K to 5000K, allowing for tailored lighting solutions.
Power, Wiring & Linkability
The UCTUN-8-BZ operates on 120V and does not require a remote power supply. It includes multiple knockouts for flexible wiring options and can be linked with other units using the provided connectors, facilitating extended installations.
Where This Fixture Works Best
- Kitchen countertops
- Office workstations
- Retail displays
- Workshop benches
- Study areas
What’s Included
- UCTUN-EZ-1 connector
- Conduit fitting
- Captive mounting screws
