Description

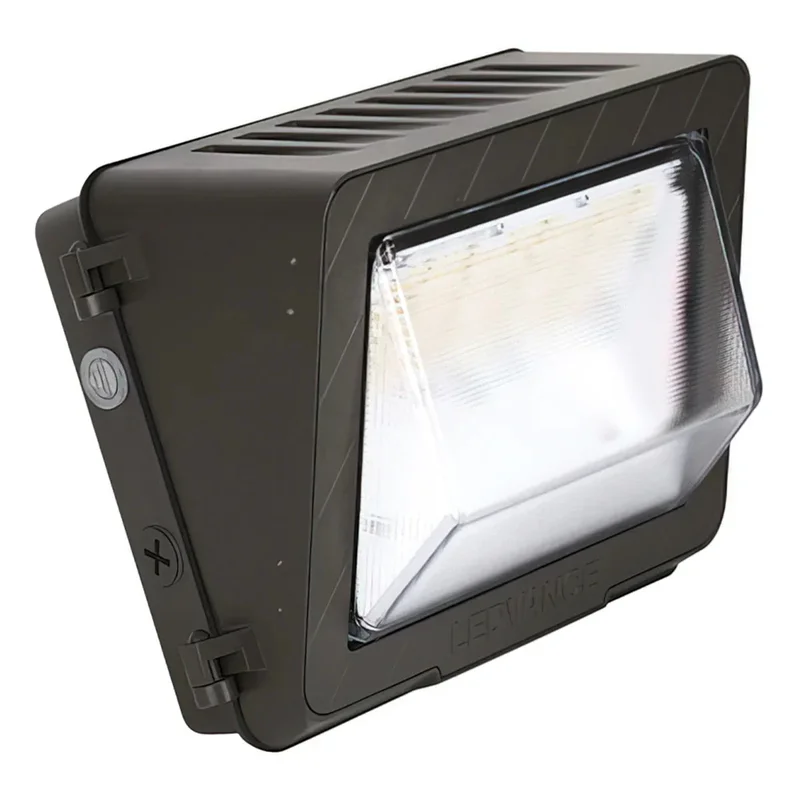

LEDVANCE SYLVANIA Dual Selectable LED Wall Pack — 20-40W Selectable, 120–347V, Bronze
The LEDVANCE SYLVANIA 63764 (Generation 9A) is a specification-grade dual selectable LED wall pack delivering up to 6,000 lumens. Engineered to maintain a traditional footprint for a seamless LED upgrade that covers old fixture marks, this unit provides wide, forward-throwing general illumination. It offers exceptional versatility by allowing installers to easily toggle between 20W, 30W, or 40W of power and 3000K, 4000K, or 5000K color temperatures. Operating on a robust 120–347V driver, it includes an integrated photocell for automated security lighting and supports optional plug-and-play sensors. With its durable glass lens and IP65 Wet Location rating, it is the ideal choice for building perimeters, outdoor corridors, and commercial facades requiring powerful, widespread light.
Key Features
- Wattage: 20W / 30W / 40W Selectable
- Selectable CCT: 3000K / 4000K / 5000K
- Delivered Lumens: 3,000 to 6,000 lumens
- Efficacy: Up to 150 Lumens Per Watt (LPW)
- Voltage: 120–347V universal input
- Dimming: 0–10V dimming standard
- Controls: Integrated photocell included; ready for field-installable sensors
- Lens: High-transmission, impact-resistant glass
- CRI: 80+
- Environmental Ratings: IP65 rated for Wet Locations
- Certifications: DLC 5.1 Premium Listed, cULus, RoHS Compliant, FCC
- Estimated Life: 100,000 hours (L70)
Typical Applications
- Commercial, industrial, and educational building perimeters
- Walkways, entryways, and loading docks
- Security and safety lighting
- General area lighting where wide outward distribution is preferred
Performance & Light Output
The 63764 wall pack provides brilliant, reliable illumination ranging from 3,000 to 6,000 lumens depending on the selected wattage setting. It casts a wide and bright pattern, making it ideal for large perimeters that require maximum visibility. With an efficacy reaching 150 LPW and a 100,000-hour rated lifespan, this fixture drastically reduces energy consumption and maintenance cycles compared to legacy HID systems.
Electrical & Controls
This fixture operates on a constant current 120–347V AC driver, making it ideal for standard and high-voltage applications in North America. It supports 0–10V dimming. The integrated photocell ensures the light only operates when needed, while the sensor-ready design allows contractors to easily plug in optional motion/daylight sensors without complicated internal wiring.
Construction & Durability
Engineered to withstand harsh environments, the 63764 features a traditional footprint housing finished in a resilient bronze powder coat, ensuring it covers the “ghosting” left by older fixtures. The LED engine is protected by a durable glass lens that resists yellowing and scratching over time. The fixture is fully IP65 rated, protecting it against dust and water ingress in extreme temperature fluctuations from -40°F to 122°F (-40°C to 50°C).
What’s Included
- LEDVANCE SYLVANIA Dual Selectable Wall Pack (Bronze)
- Integrated Photocell
