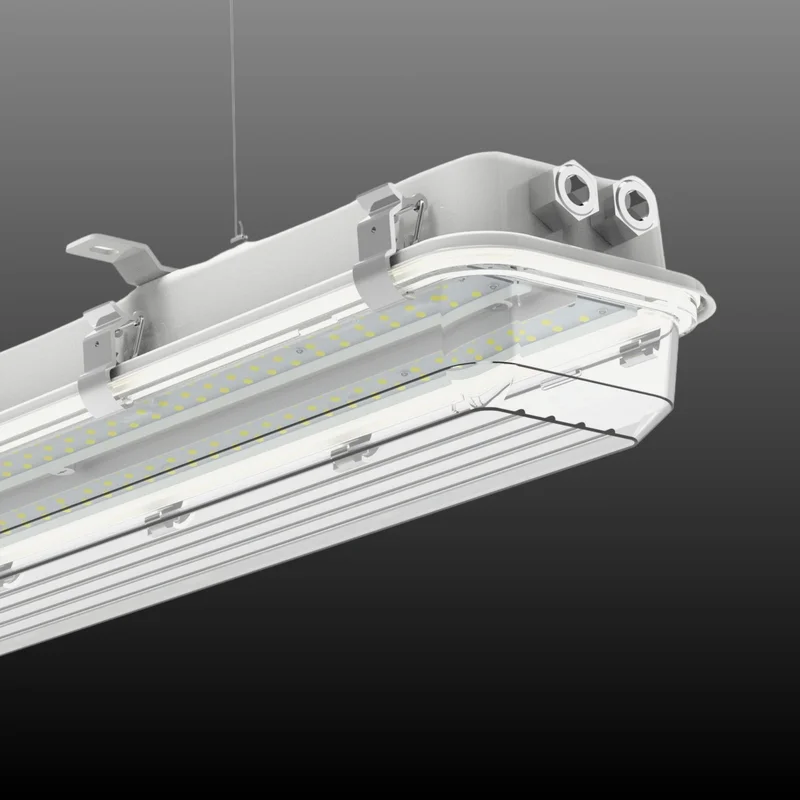

LEDVANCE Sylvania 66812 Hazardous Location Linear — 60W 4FT Series
The LEDVANCE Sylvania 66812 is a professional-grade hazardous location linear fixture engineered for extreme industrial environments. Operating at 60W to produce 9,800 lumens, this fixture utilizes a 120-277V universal driver. It is specifically designed to meet rigorous compliance standards for facilities requiring reliable explosion-proof illumination.
Key Features
- Power Consumption: 60W system designed for highly efficient industrial lighting.
- Housing Material: Explosion-proof, SUS304 stainless steel housing.
- Lens Material: UV-stabilized, fiberglass reinforced polycarbonate.
- Input Voltage: Universal 120-277V input voltage.
- Dimming Protocol: Standard 0-10V continuous dimming.
- Environmental Ratings: IP66 and IK08 rated for superior dust, water, and impact resistance.
- Lifespan: 100,000-hour L70 rated lifespan for reduced maintenance.
- Operating Temperature: Wide operating temperature range of -40°F to 122°F.
- Safety Certifications: Class I, Div 2 and Class II, Div 1/2 hazardous location certified.
Typical Applications
- Petrochemical refineries and processing plants.
- Grain milling and agricultural storage.
- Heavy manufacturing and foundry floors.
- Wastewater treatment facilities.
- Marine and offshore drilling platforms.
Performance & Light Output
This fixture generates 8,381 lumens with a crisp 5000K daylight color temperature, maximizing visual acuity for critical tasks. With a CRI of 80+, it ensures accurate color representation for detailed inspections and safety checks. The advanced LED array maintains exceptional lumen depreciation standards, offering a 100,000-hour L70 lifespan with high luminous efficacy.
Electrical & Controls
Equipped with a highly efficient 120-277V universal driver, this linear luminaire ensures stable operation across standard commercial and industrial power grids. It features standard 0-10V dimming capabilities, allowing for integration with automated facility lighting systems. The internal electrical components are engineered to handle industrial power fluctuations safely.
Construction & Durability
The housing is constructed from rugged SUS304 stainless steel to resist corrosion in caustic chemical environments. A UV-stabilized, impact-resistant polycarbonate lens protects the internal components from the high-vibration stress common in heavy industrial applications. The complete luminaire is IP66 and IK08 rated, sealing it against heavy dust and direct high-pressure water streams while operating reliably between -40°F and 122°F.
Installation & Mounting
This specific configuration is designed for versatile installation in hazardous zones. It supports suspended or continuous superimposed assemblies using standard conduit pipe, ensuring a rigid installation that mitigates vibration and prevents shifting over time in demanding operational environments.
What’s Included
- Hazardous Location Linear Fixture
- Mounting Hardware Kit
