Description
The new deep regressed models by Lotus LED Lights provide efficient LED illumination without glare in an elegantly designed downlight. The deep reflector and high-end finish trim present an architectural aesthetic, and open-plenum rated armored cable connection are suitable for commercial application. Being IC-rated, these lights can be installed right into the ceiling without housing and, being only 3.5″ deep, can be installed where ceiling space is limited. The trims on these particular models are designed for a 30º sloped ceiling installation. This model is CCT-selectable, allowing you to choose between 5 different white light color temperatures to suit your preference. A high CRI of 90+ means you’ll enjoy true color rendering in the area of illumination. Comes standard as 120V dimmable, with optional 0-10V dimmable driver available.

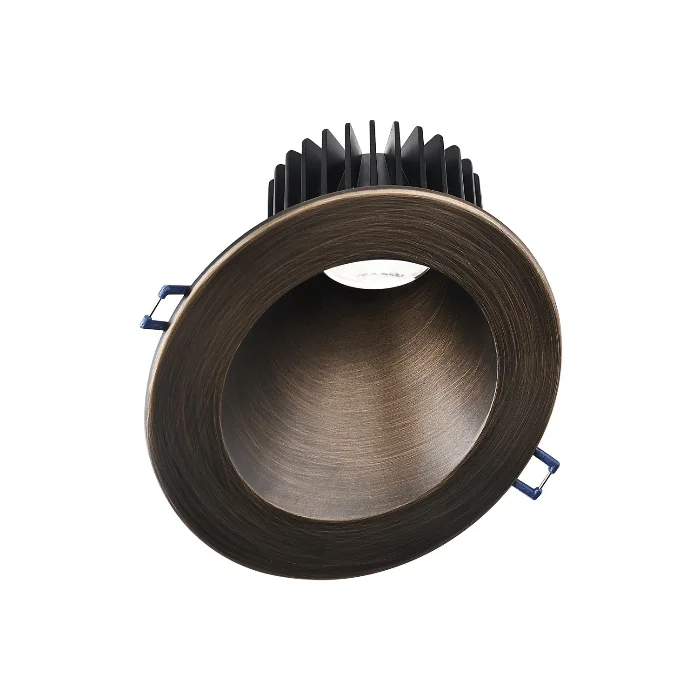

The LD4R-5CCT-HO-5R-SL30-ORB is a 5″ round 18 watt high output deep regressed LED downlight with 30º sloped ceiling trim in a oil rubbed bronze finish that provides up to 1,700 lumens of CCT-selectable white light and the following features:
- 120V operation and dimming
- Includes standard dimmable driver
- CCT-selectable: choose between warm 27K (1,500 lumens), warm 30K (1,550 lumens), warm-neutral 35K (1,600 lumens), neutral 40K (1,650 lumens) or daylight 50K (1,700 lumens) white light color temperatures via switch on the driver
- IC-rated
- Wet and damp location rated
- High CRI of 90+ for true color rendering
- Open plenum rated armored cable and metal connectors
- Fast and easy installation and no junction box required
- Air-tight
- Operating temperature: -40º to 104º F
- 50,000 hour rated
Note: the light module that is provided with this fixture is a 4″ round module, however the additional hardware involved in it’s construction make this fixture a 5″ downlight
If operating on a commercial 0-10V dimming system you must order with the Lotus 0-10V Dimmable Driver for LD6R / LD8R / LL6RR and High Output LD4R Models – 120-347V
