Description

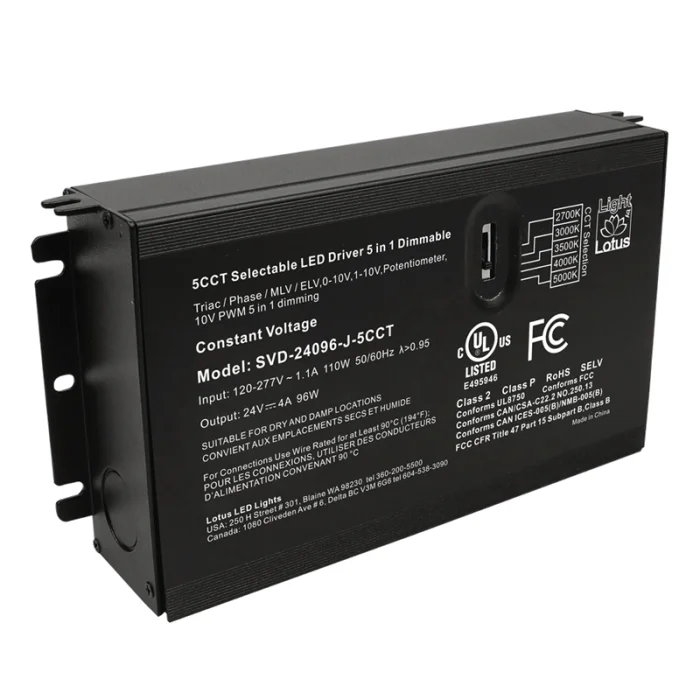

This Lotus LED 5CCT selectable 24V 96W constant voltage driver is designed for use with the LBL-COB-TW5CCT-IP20 LED tape light, supporting connection of up to two 16-ft rolls in parallel. Featuring 5-in-1 dimming compatibility and built-in wiring compartments for both line and low voltage connections, this Class 2 driver simplifies installation while delivering reliable performance across a wide range of applications.
- 5CCT selectable: choose between 2700K, 3000K, 3500K, 4000K, or 5000K to match any environment
- 5-in-1 dimming compatibility: TRIAC, 0-10V, 1-10V, Potentiometer, and 10V PWM
- 96W output at 24V DC / 4A; accepts 120V – 277V AC input
- Active Power Factor Correction (PFC) with power factor >0.95 and THD <10% at full load
- Efficiency of 89% @120V / 91% @277V at full load
- Built-in wiring compartments with multiple knock-outs for clean, easy installation
- Approved for dry, damp, and wet locations; operating temperature range of -40°F to +122°F
- Class 2, Class P certified; cULus Listed UL8750 / CAN/CSA-C22.2 No.250.13; 5-year warranty
