Description

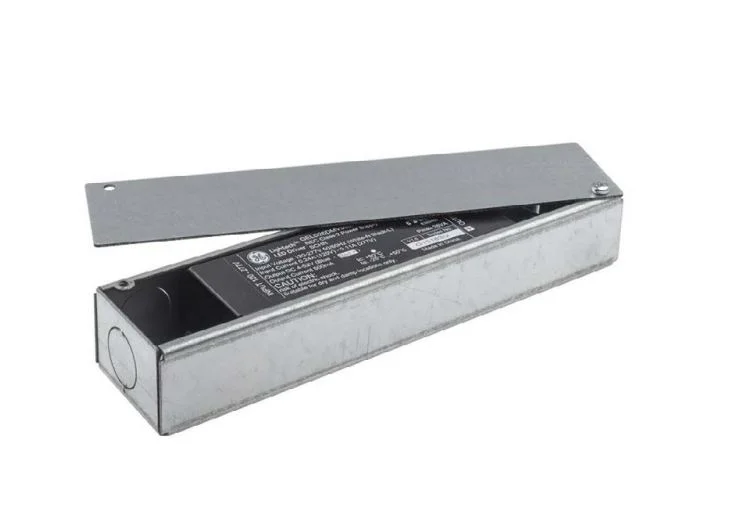

This Trailing Edge (ELV) dimmable protocol LED Drive with 10% dimming provides smooth flicker-free dimming, with a remote mounting distance of up to 10′ (20AWG), 15′ (18AWG) to LED load, with the LED load: first LED to last LED 20′ “wired in series” circuit.
- 120-277Vac, 50/60Hz input
- 26W max output
- 500mA DC constant current output
- Trailing Edge (ELV) 10% dimming
- Operating temperature: -4°F to 140°F
- Class II rated
- Suitable for use in damp and dry locations
- Short circuit protection, Overload protection, Over-voltage protection, Thermal protection
