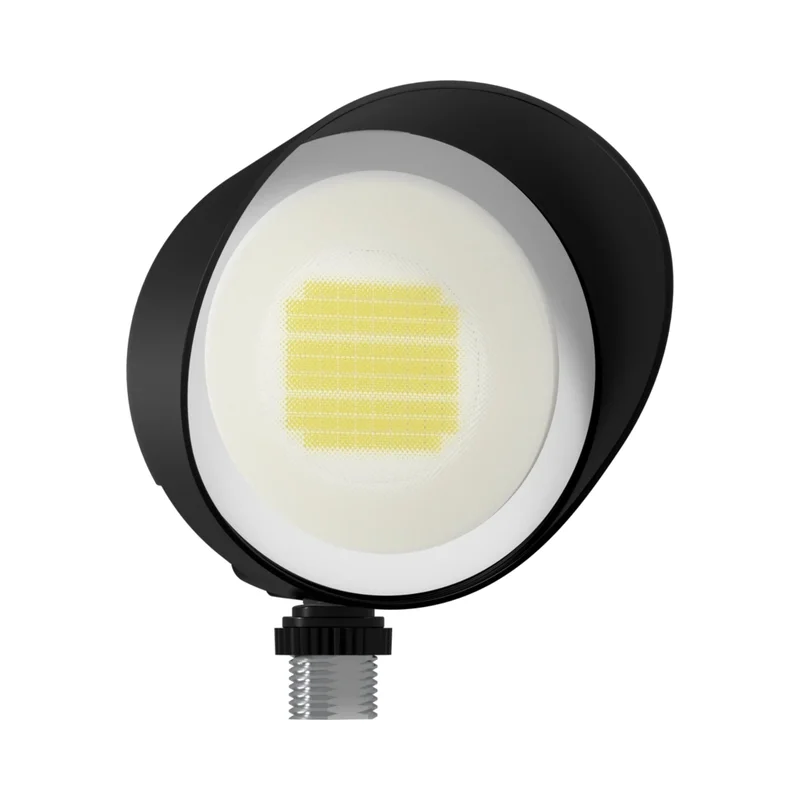

RAB BULLET20A Field Adjustable Flood Light 2095 Lumens 20W Selectable CCT 120-277V Black

Description

RAB Bullet Field Adjustable Flood Light — 20W Configuration

The RAB BULLET20B is a versatile flood light offering 20W power, delivering up to 2095 lumens with a selectable CCT of 3000K, 4000K, and 5000K. It operates on 120-277V and is IP65 rated for outdoor use. This flood light is suitable for various applications and complies with UL standards for wet locations.

Key Features

• Field Adjustability: Offers adjustable wattage settings of 20W, 15W, and 10W to suit different lighting requirements.
• Selectable CCT: Choose between 3000K, 4000K, and 5000K color temperatures for optimal ambiance.
• Durable Construction: Features a die-cast aluminum housing and glass lens for long-lasting performance.
• High Efficacy: Provides an efficacy range of 98.3 to 114.3 lm/W for energy-efficient lighting.
• Long Lifespan: Designed for a 100,000-hour LED lifespan, ensuring reliable operation over time.
• Surge Protection: Includes 1 kV surge protection for enhanced reliability.
• Environmentally Friendly: Mercury and UV free, with RoHS-compliant components.
• Mounting: Comes with a heavy-duty mounting arm and stainless steel screws for secure installation.
• Warranty: Backed by a 5-year limited warranty covering light output, driver performance, and paint finish.

Typical Applications

• Building facades
• Signage illumination
• Landscape lighting
• Security lighting
• Parking areas

Performance & Light Output

This flood light provides a maximum of 2095 lumens with a color rendering index (CRI) of 82-85, ensuring vibrant and accurate color representation. It features a NEMA beam spread of 6H x 6V for wide coverage.

Electrical & Controls

The BULLET20B operates on a 120-277V input with a constant current driver. It supports TRIAC dimming down to 10% and has a power factor of 98.9% at 120V, ensuring efficient power usage.

Construction & Durability

Constructed with a die-cast aluminum housing and glass lens, this fixture is designed to withstand harsh environments. It is IP65 rated, making it suitable for wet locations, and can operate in temperatures ranging from -40°F to 104°F.

Installation & Mounting

The flood light includes a heavy-duty mounting arm with an ‘O’ ring seal and stainless steel screws for secure and reliable installation.

What’s Included

• Flood light fixture
• Mounting arm
• Stainless steel screws
