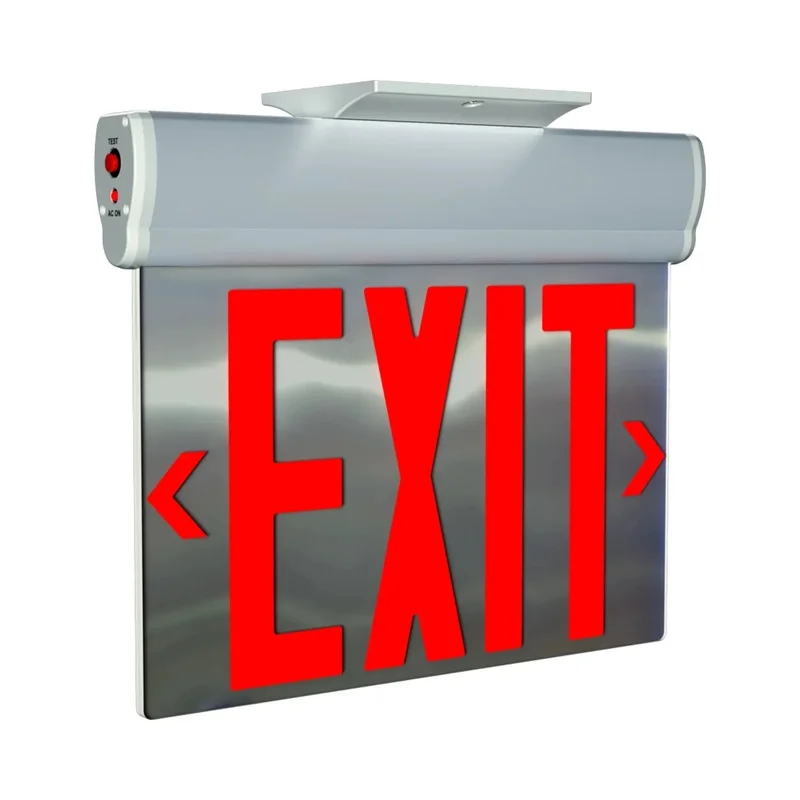

RAB ELXNYC-MP Red Edge-Lit Exit Sign 90-Min Backup 120-277V Recessed Mount Silver

Description

RAB Lighting ELXNYC-MP Edge-Lit Exit Sign — Emergency Capability with 120-277V Voltage Summary

The RAB Lighting ELXNYC-MP is a red edge-lit exit sign designed for high-end aesthetics and economical performance. Featuring a 90-minute battery backup and 120-277V input voltage, this exit sign is ideal for ensuring safety and compliance in emergency situations. It is New York City approved and suitable for indoor use in dry and damp environments.

Key Features

• Battery Backup: Nickel-Metal Hydride battery provides 90 minutes of emergency operation.
• Voltage Compatibility: Operates on 120-277V, accommodating a wide range of electrical systems.
• Panel Design: Double-face mirror panel with red letters for enhanced visibility.
• Mounting Options: Includes recessed ceiling mounting hardware for versatile installation.
• Construction: Durable thermoplastic housing with a silver finish.
• Recharge Time: Battery recharges fully in 24 hours to ensure readiness.
• Operating Temperature: Functions effectively between 32°F to 104°F (0°C to 40°C).
• Compliance: UL Listed and New York City approved for safety and reliability.

Performance & Illumination

The exit sign features red letters on a double-face mirror panel, ensuring clear visibility. The panel tilts 0-180° for flexible mounting orientations, providing a high-end look while remaining budget-friendly.

Electrical & Battery

Operating on 120-277V, the unit features a Nickel-Metal Hydride battery that recharges in 24 hours, providing 90 minutes of emergency operation. It does not include self-diagnostics or a remote test switch.

Physical & Installation Details

Constructed from durable thermoplastic with a silver finish, the sign includes recessed ceiling mounting hardware. The dimensions are 13.75 in. length, 0.38 in. width, and 8.81 in. height.

Compliance & Safety

UL Listed and New York City approved, the sign is suitable for indoor use in dry and damp environments. It complies with IP20 rating and California Title 20 requirements.

What’s Included

• Edge-lit exit sign with double-face mirror panel
• Recessed ceiling mounting hardware
• Adhesive chevron arrows
