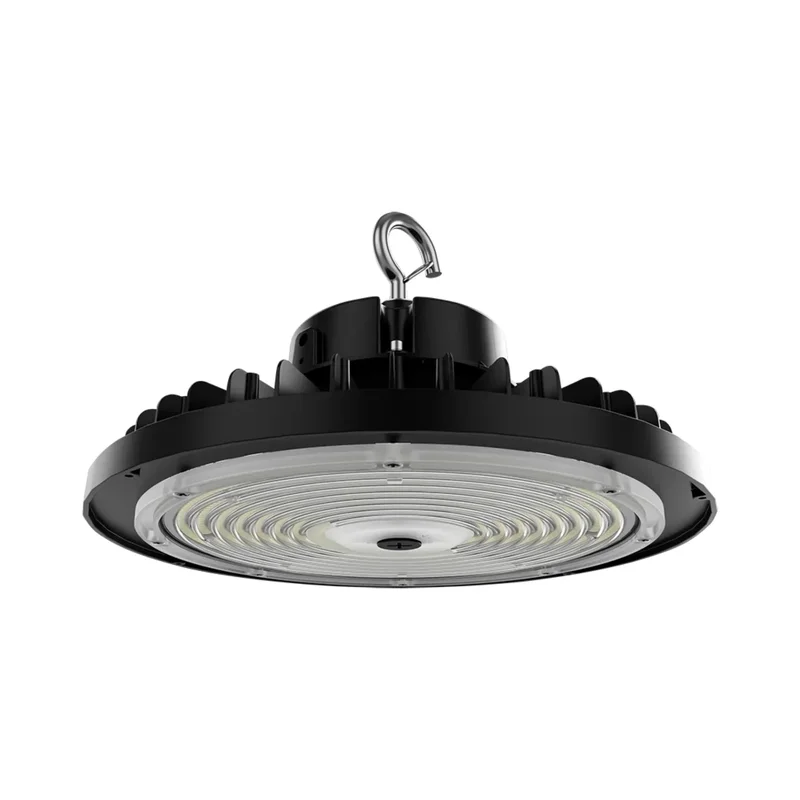

RAB H15XLB Field-Adjustable LED High Bay — 240W / 200W / 150W Selectable
The RAB H15XLB is a field-adjustable LED high bay with a black finish that provides up to approximately 35,618 lumens with selectable wattage options of 240W, 200W, and 150W and selectable CCT options of 3000K / 4000K / 5000K. It operates on universal 120-277V with integrated 0-10V dimming and is rated for wet locations with an IP65 rating. The fixture is UL Listed and DLC Premium Listed for performance and rebate eligibility.
Key Features
- Selectable Wattage: 240W / 200W / 150W
- Selectable CCT: 3000K / 4000K / 5000K
- Maximum Output: Up to ~35,618 lumens
- Voltage Range: 120-277V
- Dimming: 0-10V dimming to 10%
- Environmental Rating: IP65 wet location
- Certifications: DLC Premium, UL Listed
- Finish: Black powder coat
Typical Applications
- High-ceiling warehouses
- Distribution centers
- Manufacturing facilities
- Industrial workshops
- Large commercial interiors
Performance & Light Output:
Delivered lumen output varies by selected wattage and CCT. The fixture is engineered to provide consistent high-output illumination across all configurations for demanding environments.
Electrical & Controls:
Operates on 120-277V, 50/60 Hz with an integrated constant current driver. Includes 0-10V dimming for compatibility with standard low-voltage control systems.
Construction & Durability:
Die-cast aluminum housing with black powder coat finish and polycarbonate lens. Rated IP65 for protection against dust and water ingress in wet locations and built for industrial performance.
Installation & Mounting:
Includes a heavy-duty hanging hook and 6-foot cord for suspended installation. Compatible with 3/4″-14 NPT pendant mounting hardware (sold separately).
Included
LED high bay fixture, hanging hook, and 6-foot cord.
Accessories
Optional accessories include pendant and surface mount kits, reflectors, refractors, wire guard kits, occupancy sensors, Lightcloud Blue sensor/controller options, MSR1 remote, and emergency battery backup solutions (sold separately).
