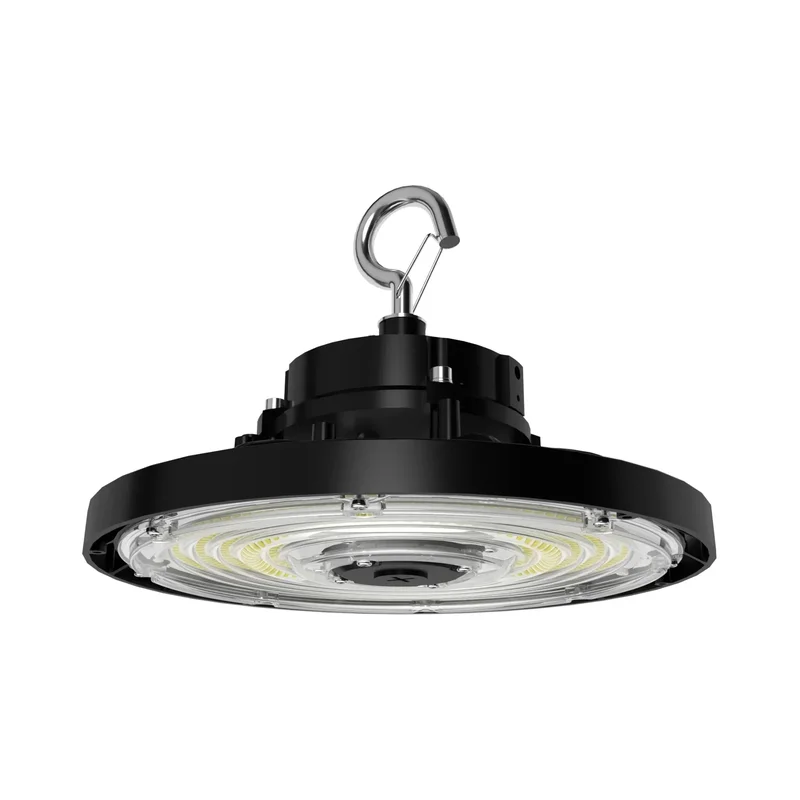

RAB H17 Field Adjustable UFO High Bay Light

Description

RAB H17 Field Adjustable UFO High Bay Light – Premium Industrial LED Lighting

The RAB H17 Field Adjustable UFO High Bay delivers exceptional performance and versatility for warehouses, manufacturing facilities, retail spaces, and industrial environments. With selectable wattages from 100W to 500W and field-adjustable color temperatures, this premium LED high bay provides the perfect lighting solution for any application.

Key Features

• Selectable Wattages: H17S: 100/80/60W, H17: 150/120/100W, H17XL: 240/200/160W, and H17XXL: 500/400/300W
• Selectable CCT: 3000K/4000K/5000K adjustable for optimal color rendering
• Static CCT Options: 4000K and 5000K available for H17 and H17XL models in 480V only
• Wet Location Rated: Suitable for demanding environments with moisture exposure
• Expansion Port: Comes with expansion port for PIR and microwave sensor kits
• Mounting Flexibility: Kits available for surface mount or pendant mount installation
• Cord & Plug Options: 8 ft cord & plug options available for easy installation
• DLC Premium Listed: Qualifies for utility rebates and energy incentives
• 5-Year Limited Warranty: Long-term reliability and peace of mind

Available Accessories

• Aluminum and polycarbonate reflectors for enhanced light distribution
• Wireguard and drop lens options for H17S, H17, and H17XL models
• Aluminum reflector and wireguard available for H17XXL

Construction & Performance

• Cold Weather Starting: Minimum starting temperature -40°C (-40°F)
• Cold Weather Starting for Battery Backup: Minimum starting temperature 0°C (32°F)
• Maximum Ambient Temperature: Suitable for use up to 50°C (122°F)
• Mounting: Standard hanging hook and 6-foot cord; heavy-duty 3/4″-14 NPT hook and 3/4″-14 pendant mount capable
• Housing: Precision die-cast aluminum for superior heat dissipation
• Lens: Durable polycarbonate lens
• Reflector: Polycarbonate/Aluminum options for optimized light output
• Cord & Plug: Optional 6ft cord with NEMA L5-15P plug for 120V, NEMA L7-15P plug for 277V, and NEMA L8-20P plug for 480V

Compliance & Certifications

• Green Technology: Mercury and UV free, RoHS-compliant components
• UL Listed: Suitable for wet locations
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires and components independently tested
• IP Rating: IP65 ingress protection for dust and water resistance
• DLC Listed: Design Lights Consortium Premium product qualifying for highest tier rebates
• Dimming Driver: Includes wiring for 0-10V dimming systems

Performance Specifications

The H17 series delivers exceptional efficacy with lumen outputs ranging from 9,205 to 79,203 lumens depending on wattage and CCT selection. With CRI ratings from 81-92 and efficacy up to 178 Lm/W, these high bays provide superior light quality and energy efficiency for any industrial or commercial application.

Voltage Ratings: 120-277V standard; 480V available for select H17 and H17XL models
