Description

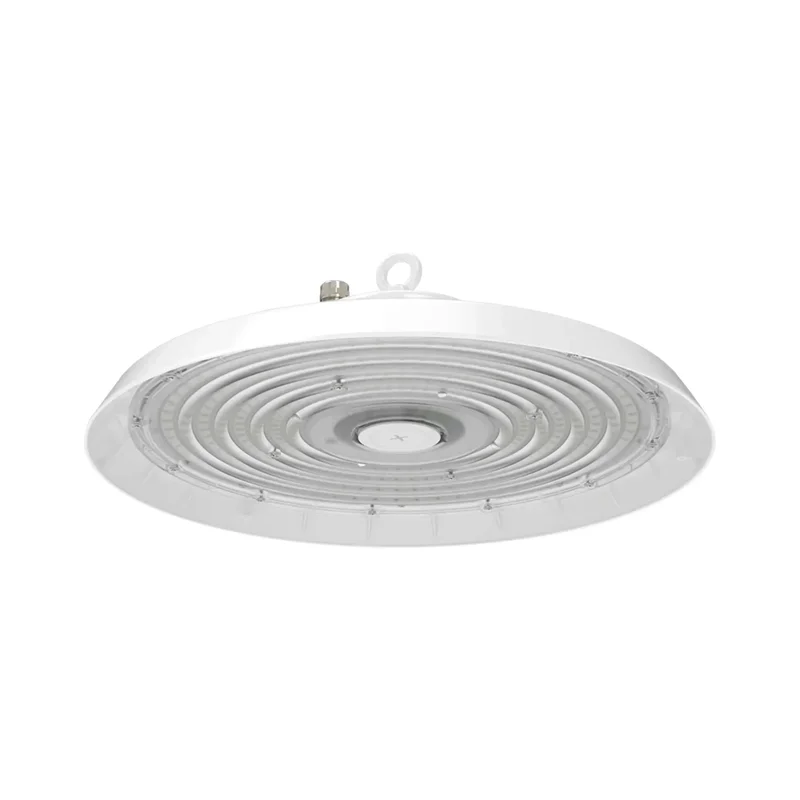

RAB H22XL/480 Field-Adjustable High Bay with Adjustable Beam Angle — 150W / 200W / 240W Selectable
The RAB H22XL/480 is a high-output LED high bay engineered for 480V electrical systems. It features selectable wattage of 150W / 200W / 240W, selectable CCT of 3000K / 4000K / 5000K, and adjustable beam angles of 60° / 90° / 105°. The fixture operates on 480V with 0–10V dimming and carries DLC Premium, UL Wet Location, IP69K, and NSF ratings for demanding industrial environments.
Key Features:
- Selectable Wattage: 150W / 200W / 240W
- Selectable CCT: 3000K / 4000K / 5000K
- Adjustable Beam Angles: 60° / 90° / 105°
- Voltage: 480V
- Dimming: 0–10V dimming
- Maximum Output: Up to 36,092 lumens
- L70 Rating: 100,000 hours
- Environmental Ratings: IP69K, UL Wet Location
- Certifications: DLC Premium, NSF
- Surge Protection: 4kV + 6kV
Typical Applications:
- Large industrial plants
- Heavy manufacturing facilities
- Food processing operations
- Warehouses with 480V service
- High ceiling industrial spaces
Electrical & Controls:
Operates on 480V, 50/60Hz with constant current driver and integrated 0–10V dimming.
Installation & Mounting:
Includes hanging hook and cord for suspended installation. Pendant mounting accessories available separately.
Accessories:
Optional accessories include pendant mount kit, PIR40 and MVS50 occupancy sensors, Lightcloud Blue PIR40/LCB and MVS50/LCB modules, and MSR1 remote. Emergency battery solutions sold separately (model dependent).
