Description

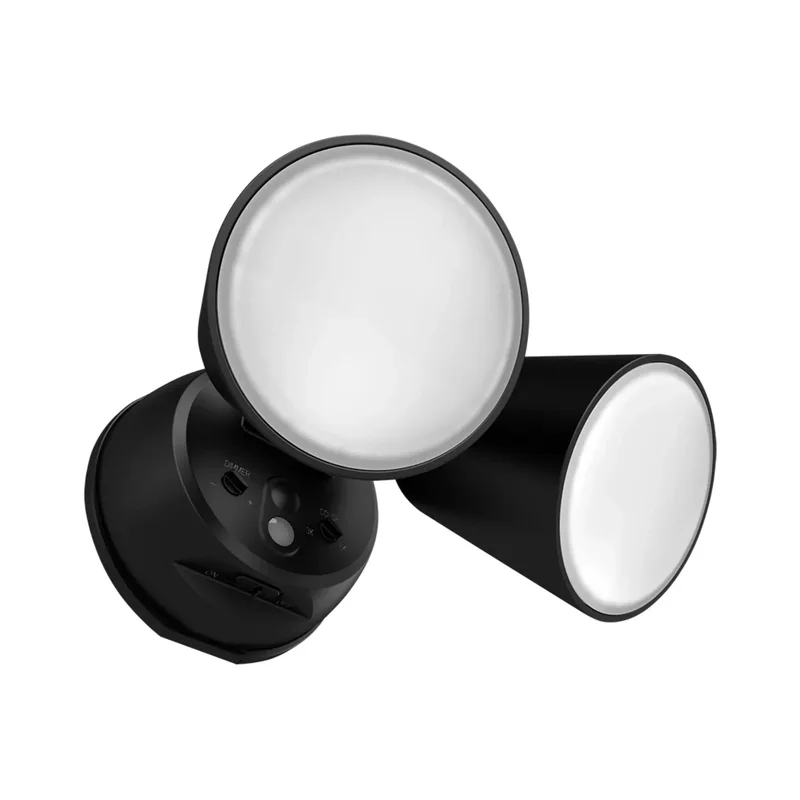

RAB L2X Luminator Dusk to Dawn Security Flood Light
The RAB L2X Luminator is a professional-grade tunable white LED security flood light built for residential and commercial outdoor applications. With field-adjustable color temperature (3000K, 4000K, or 5000K) and brightness from 200 to 2200 lumens, this dual-head fixture delivers precise, customizable illumination without stocking multiple SKUs. The integrated dusk-to-dawn photocell automatically activates at dusk and shuts off at dawn, reducing energy waste and eliminating manual operation. IP65-rated and backed by a 100,000-hour LED lifespan, the L2X is built to perform in all climates and conditions.
Key Features
- Tunable White Technology: Field-selectable 3000K, 4000K, or 5000K color temperature during installation
- Adjustable Brightness: 200–2200 lumens (10%–100%) for precise output control
- Dusk to Dawn Photocell: Integrated sensor with on/off switch override (factory default: off)
- Dual-Head Design: Two independently aimed flood heads covering up to 2,000 sq ft
- IP65 Weather Protection: Dust-tight and water-resistant for all outdoor environments
- 100,000-Hour LED Lifespan: Based on IES LM-80 and TM-21 calculations
- High Efficacy: 102–105.8 lm/W depending on CCT selection
- Superior Color Rendering: 81–84 CRI for accurate color and visual clarity
- DLC 5.1 Listed: Qualifies for utility rebates
- 1kV Surge Protection: Guards against electrical spikes
- RoHS Compliant: Mercury and UV free
Available Finish Options
- Black – Classic matte finish for modern and contemporary exteriors
- White – Clean finish ideal for light-colored facades and soffits
- Bronze – Warm tone that blends with traditional and transitional architecture
All finishes feature durable polyester powder coating for long-term weather resistance.
Common Applications
- Residential driveways, garages, and entryways
- Commercial building perimeters and surveillance areas
- Parking lots, loading docks, and warehouse exteriors
- Walkways, pathways, and multi-family common areas
- Retail storefronts and municipal facility perimeters
Specifications
- Wattage: 20W | Voltage: 120V AC / 60Hz
- Light Output: 2,000 lm (3000K) / 2,072 lm (4000K) / 2,094 lm (5000K)
- Efficacy: 102.0 / 105.2 / 105.8 lm/W
- CRI: 81 at 3000K, 84 at 4000K & 5000K
- Operating Temp: -20°C to 50°C (-4°F to 122°F)
- Mounting: Wall, eave, or ceiling (max 12 ft height)
- Weight: 1.4 lbs | IP Rating: IP65
- Certifications: DLC Listed, UL Listed, IESNA LM-79 & LM-80
- Warranty: 5-year limited (light output, driver, and finish)
Authorized RAB Lighting dealer — genuine products, full manufacturer warranty, and fast shipping from Bees Lighting.
