Description

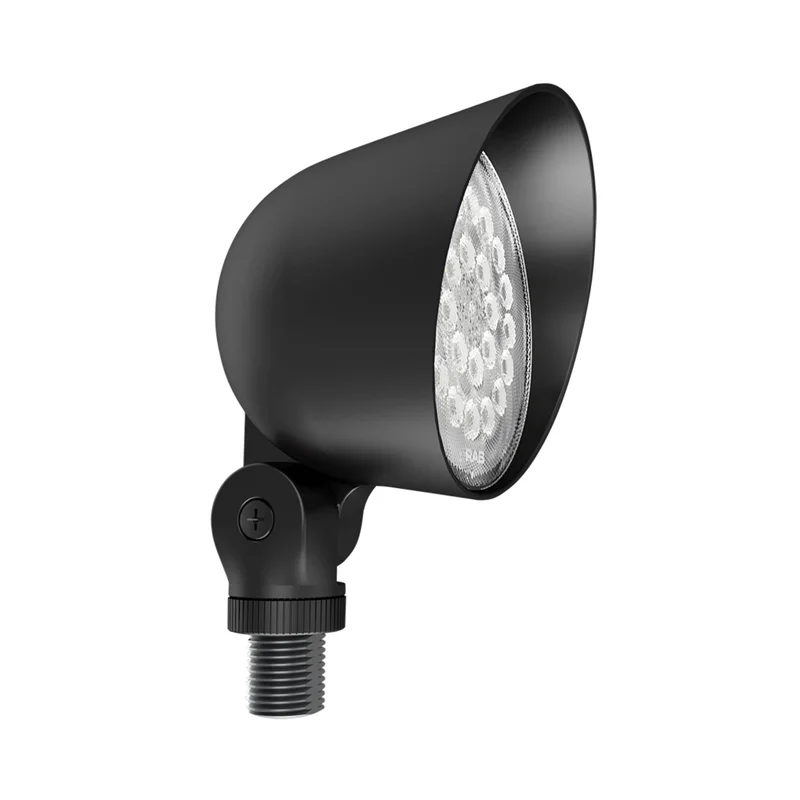

LF17 Field Adjustable Landscape Lighting Flood Light — 8W Configuration
The LF17 flood light offers a versatile lighting solution with 8W power, delivering up to 1115 lumens and a selectable CCT range from 2700K to 5000K. Designed for landscape applications, it operates on 120-277V and is IP65 rated for dust and water protection.
Key Features
- Field Adjustable Wattage: Choose from 1W, 2W, 4W, 5W, or 8W settings to suit specific lighting requirements.
- Selectable CCT: Adjust the color temperature between 2700K and 5000K for desired ambiance.
- High Efficacy: Achieves an efficacy range of 119.3 to 149.5 lm/W for energy-efficient performance.
- Long Lifespan: Designed to last 50,000 hours based on IES LM-80 and TM-21 standards.
- Durable Construction: Features a die-cast aluminum housing and PMMA lens for robust outdoor use.
- Consistent Color: Utilizes 7-step MacAdam Ellipse binning for uniform color consistency.
- UL Listed: Suitable for wet locations, ensuring reliable outdoor performance.
- Surge Protection: Includes 2.5 kV surge protection for enhanced durability.
- Power Factor: High power factor of 99.7% at 120V for efficient operation.
- RoHS Compliant: Environmentally friendly with mercury and UV-free components.
Typical Applications
- Landscape Lighting
- Pathway Illumination
- Accent Lighting
- Garden Lighting
- Architectural Highlighting
Performance & Light Output
This flood light delivers up to 1115 lumens with a color rendering index (CRI) of 82-86, ensuring vibrant and accurate color representation. Its high efficacy and long lifespan make it suitable for demanding outdoor environments.
Electrical & Controls
The fixture operates on 120-277V with a constant current driver. It supports 0-10V dimming, allowing for smooth light level adjustments. The power factor is nearly perfect at 99.7%, and it includes 2.5 kV surge protection.
Construction & Durability
Constructed with a die-cast aluminum housing and PMMA lens, the LF17 is designed to withstand harsh outdoor conditions. It is IP65 rated, ensuring protection against dust and water ingress, and operates in temperatures ranging from -40°F to 104°F.
Installation & Mounting
The LF17 features a knuckle arm mount for flexible positioning and easy installation in various landscape settings.
What’s Included
- LF17 Flood Light Fixture
