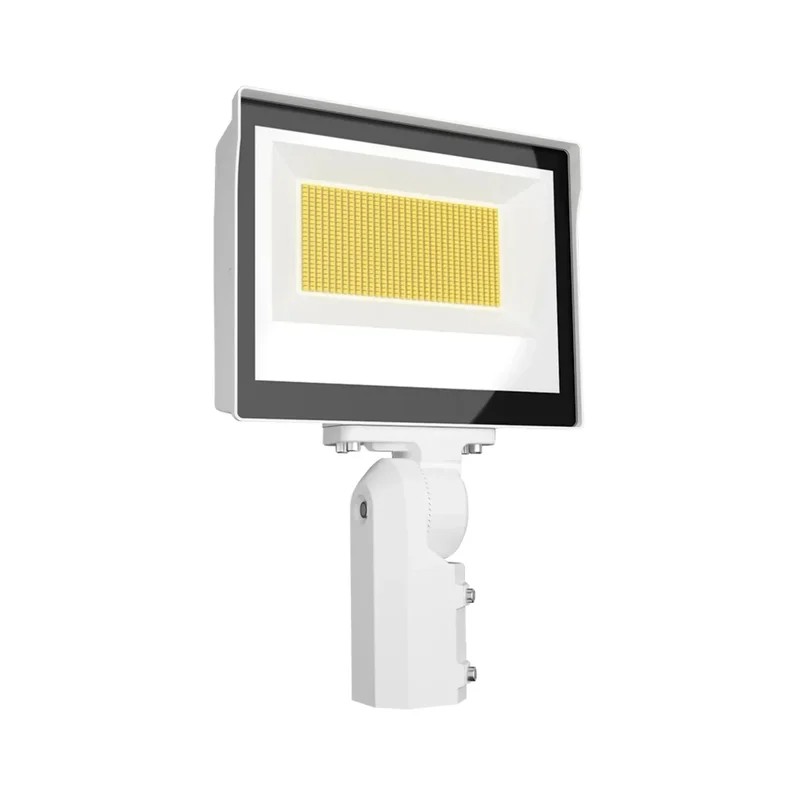

RAB X17XFU140SFW Field-Adjustable Floodlight — 140W, Selectable CCT & Power, Slipfitter Mount, Photocell, 120-277V, White
The RAB X17XFU140SFW is a highly efficient, 3-way field-adjustable LED flood light in a clean white finish, designed to deliver massive illumination with incredible on-site versatility. This powerful luminaire produces up to 19,532 lumens and allows installers to easily toggle between three high-output wattage levels (140W, 105W, 75W) and three color temperatures (3000K, 4000K, 5000K) directly in the field. It features a wide NEMA 7H x 7V beam spread, providing a broad, powerful wash of light ideal for building perimeters, large landscapes, and architectural accents. Operating on a 120-277V driver, this model comes fully equipped with a selectable photocell that can be easily turned on or off for automated dusk-to-dawn energy savings. Built for longevity, the X17XFU140SFW is housed in precision die-cast aluminum with a tempered glass lens and earns an IP65 rating for durability against the elements. With a 5-year limited warranty and standard 0-10V dimming, it is a perfect long-term solution for professional-grade exterior lighting.
Key Features
- Wattage: 3-Way field adjustable to 140W, 105W, or 75W (factory default 140W).
- Selectable CCT: Field adjustable between 3000K (Warm), 4000K (Neutral), and 5000K (Cool).
- Dimming: Integrated 0-10V dimming capabilities, dimming down to 10%.
- Photocell: Integrated 120-277V selectable photocell (can be turned on/off) and shorting cap.
- NEMA Type: Wide NEMA 7H x 7V beam spread.
- Mounting Type: Slipfitter mount with 180° pivot for 2 3/8″ tenons.
- Delivered Lumens: Up to 19,532 lumens at the highest 140W setting.
- Environmental Ratings: IP65 rated for dust and water; UL Listed for wet locations.
- Warranty: 5-Year limited warranty.
Typical Applications
- White-themed building perimeters and facade illumination
- Large landscape, patio, and yard lighting
- Commercial signage and architectural accents
- General high-output exterior area and security lighting
Performance & Light Output
The X17XFU140SFW provides high-intensity, uniform light with a maximum output of 19,532 lumens and an excellent efficacy of up to 143 lm/W. Its advanced optical design ensures excellent color consistency. With long-life surface-mount LEDs rated for 100,000 hours (based on LM-80 results and TM-21 calculations), this fixture significantly reduces maintenance and energy costs over time.
Electrical & Controls
Equipped with a Class 2 constant current driver and robust surge protection, the X17XFU140SFW is built for exceptionally stable performance on 120-277V systems. It supports standard 0-10V dimming for integration with motion sensors or building control systems and relies on the integrated selectable photocell to automate daylight operation.
Construction & Durability
The fixture features a rugged precision die-cast aluminum housing finished in white and a tempered glass lens. Its IP65 rating confirms total protection against dust and water jets, safely operating in extreme starting temperatures down to -40°F (-40°C) up to 104°F (40°C) ambient.
Installation & Mounting
This model includes an integrated heavy-duty slipfitter mount, ideal for secure installations on standard 2 3/8″ tenons. The mount features a 180° pivot and rotates in 6° increments for very precise light aiming.
What’s Included
- RAB X17XFU140SFW LED Field-Adjustable Floodlight (White)
- Integrated Slipfitter Mount
- Integrated Selectable Photocell
- Shorting Cap
- 5-Year Manufacturer Warranty
