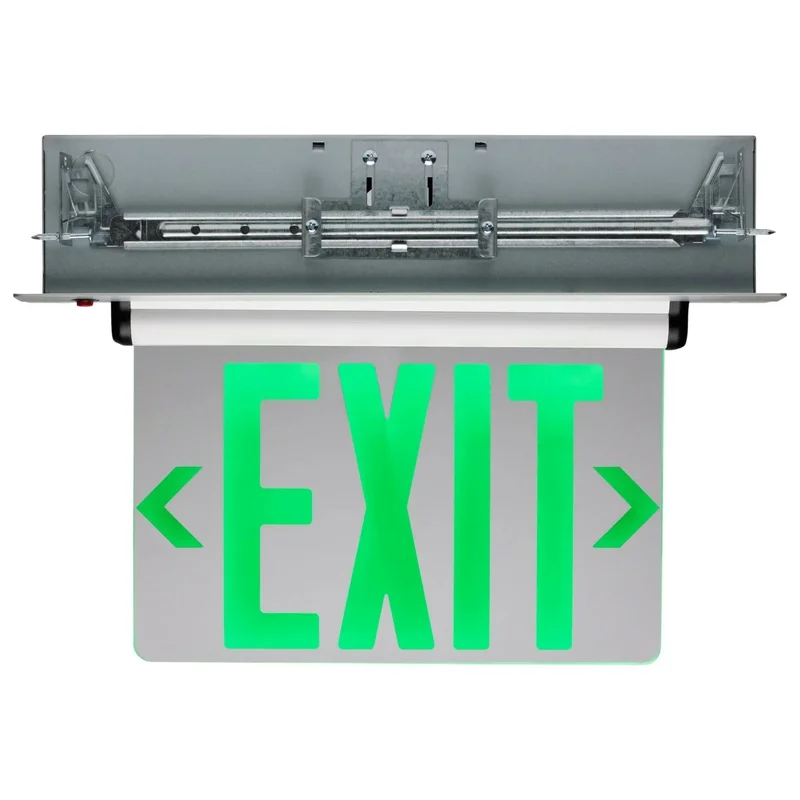

SATCO|NUVO 67-115 Green Edge-Lit Exit Sign, Dual Face, 90-Min Backup, 120-277V, Aluminum, Silver Finish

Description

SATCO|NUVO Edge-Lit Exit Sign — Emergency Capability with 120-277V Input

The SATCO|NUVO 67-115 is a green edge-lit exit sign designed for dual face visibility and equipped with a 90-minute battery backup. Operating on 120-277V, this exit sign is ideal for ensuring safety in commercial and industrial settings. The mirrored acrylic panel enhances visibility, while the aluminum construction provides durability. Certified for ULus and Title 20 compliance, it meets stringent safety and energy standards.

Key Features

• Battery Backup: Delivers 90 minutes of emergency illumination to maintain safety during power failures.
• Voltage Range: Compatible with 120-277V systems, offering flexibility in installation.
• Face Type: Dual face design with a mirrored acrylic panel for enhanced visibility.
• Material: Constructed from durable aluminum with a sleek silver finish.
• Recharge Time: Fully recharges in 24 hours, ensuring readiness for the next emergency.
• Letter Height: Features 6-inch high letters with a 0.75-inch stroke for clear readability.
• Surge Protection: Built-in 3KV surge protection safeguards against electrical spikes.
• Operating Temperature: Functions effectively in temperatures ranging from 10C to 40C.

Performance & Illumination

The exit sign utilizes integrated LED technology, consuming only 2.94 watts while providing bright, green illumination through its mirrored acrylic panel. The 6-inch letter height and 0.75-inch stroke ensure clear visibility from a distance.

Electrical & Battery

Designed for 120-277V input, the exit sign includes a 4.8V AA300mAh Ni-Cad battery, offering a 90-minute backup duration. It features a 24-hour recharge time and built-in surge protection for reliable operation.

Physical & Installation Details

Constructed from aluminum with a mirrored acrylic face, the exit sign measures 15.75 inches in length and width, and 11 inches in height. It includes all necessary mounting hardware for versatile installation options.

Compliance & Safety

ULus certified and Title 20 compliant, the exit sign is rated for damp locations and meets California’s energy efficiency standards. It operates within a temperature range of 10C to 40C.

What’s Included

• Mounting hardware
• Installation accessories
