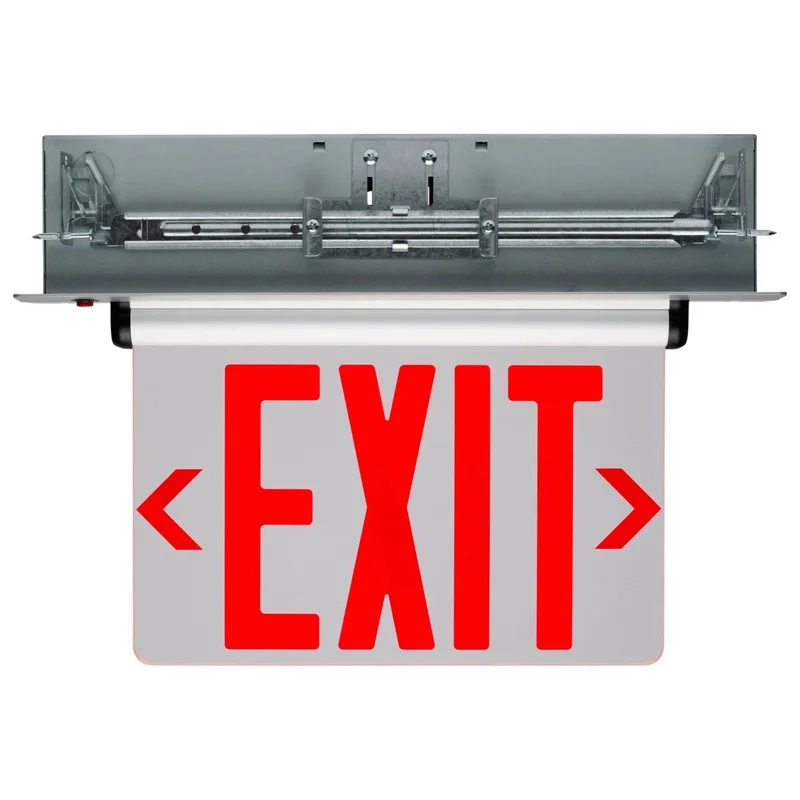

SATCO|NUVO 67-117 Red Edge-Lit Exit Sign Dual Face 90-Min Backup 120-277V Silver

Description

SATCO|NUVO Edge-Lit Exit Sign — Emergency Capability with 120-277V Input

The SATCO|NUVO 67-117 is a red edge-lit exit sign designed for dual face visibility and equipped with a 90-minute battery backup. Operating on 120-277V, this fixture is ideal for ensuring safety in emergency situations. Its damp rating makes it suitable for indoor installations where moisture may be present. Compliant with ULus and Title 20 standards, it meets stringent safety and efficiency requirements.

Key Features

• Battery Backup: Integrated 4.8V Ni-Cad battery provides 90 minutes of emergency power.
• Voltage Range: Compatible with both 120V and 277V systems for versatile installation.
• Face Type: Dual face with mirrored acrylic panel enhances visibility in emergency situations.
• Material: Constructed from durable aluminum with a silver finish for a sleek appearance.
• Mounting Hardware: Includes all necessary components for straightforward installation.
• Recharge Time: Fully recharges in 24 hours, ensuring readiness for the next emergency.
• Surge Protection: Built-in 3KV surge protection safeguards against electrical spikes.
• Operating Temperature: Functions effectively in temperatures ranging from 10C to 40C.

Performance & Illumination

This exit sign features a 6-inch letter height with a 0.75-inch stroke, providing clear visibility. The mirrored acrylic panel enhances the red lettering’s prominence, ensuring it is easily seen in emergencies.

Electrical & Battery

Designed to operate on 120-277V, this unit includes a 4.8V Ni-Cad battery that recharges in 24 hours. It features a built-in test switch and 3KV surge protection for reliable performance.

Physical & Installation Details

The aluminum housing with a silver finish provides durability and aesthetic appeal. The unit measures 16.34 inches in length, 4.72 inches in width, and 8.66 inches in height, and comes with all necessary mounting hardware.

Compliance & Safety

ULus listed and Title 20 compliant, this exit sign is suitable for damp locations and meets California’s energy efficiency standards. It is also ROHS compliant, ensuring minimal environmental impact.

What’s Included

• Edge-Lit Exit Sign
• Mounting hardware
• Installation instructions
