Sylvania Opti-Select Cutoff Wall Packs

Description

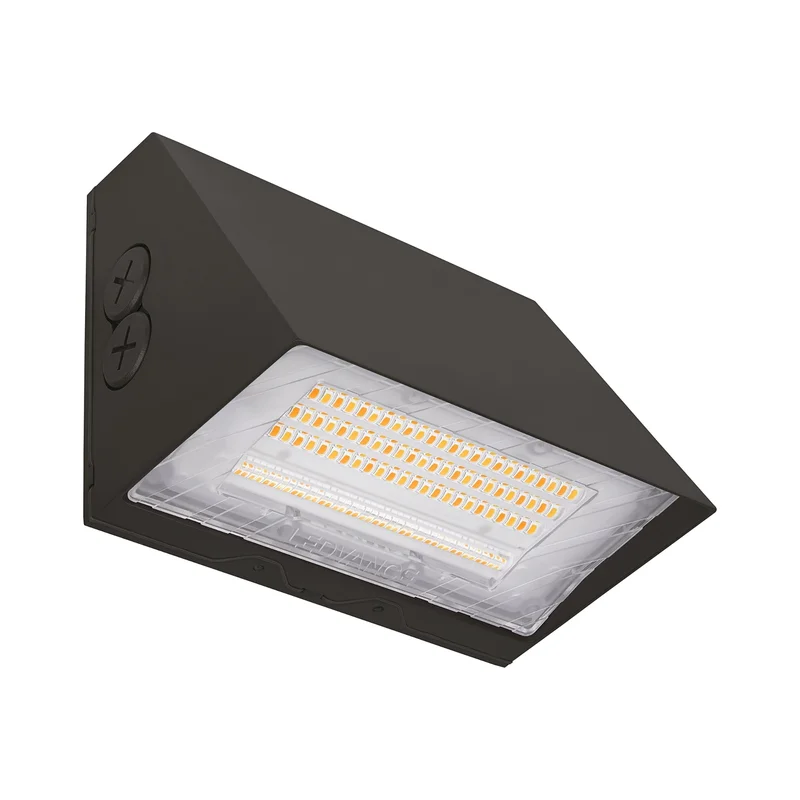

Sylvania Opti-Select Full Cutoff LED Wall Packs — Selectable Wattage, CCT & Optics

The LEDVANCE Sylvania Opti-Select Full Cutoff Wall Pack series delivers a complete commercial perimeter lighting solution in a single fixture family. Available in Bronze, Black, and White finishes and three wattage tiers — 25W/30W/40W, 40W/50W/60W, and 60W/80W/100W — these wall packs give facility managers and electrical contractors the flexibility to dial in the exact output, color temperature, and light distribution required for any application, all without swapping lenses or ordering separate SKUs.

Sylvania Opti-Select Features

• Selectable Wattage: Choose from 3 power levels per tier — 25/30/40W (up to 6,000 lm), 40/50/60W (up to 9,000 lm), or 60/80/100W (up to 15,000 lm)
• Selectable CCT: Field-switchable 3000K, 4000K, or 5000K color temperature
• OPTI-SELECT Optics: Instantly switch between Type II, Type III, and Type IV light distributions via built-in switch — no physical lens swaps required
• Full Cutoff Design: Zero uplight for dark-sky compliance and glare-free perimeter illumination
• Integrated Photocell: Switchable dusk-to-dawn control included; field-disableable for external or networked controls
• 0-10V Dimming: Standard dimming capability on all models
• IP65 Wet Location Rated: Protected against dust ingress and high-pressure water jets
• Universal Voltage: 120-347V AC operation, PF >0.9, THD <20%
• 4kV Surge Protection: Built-in driver protection against power anomalies
• High Efficacy: 150 LPW across all wattage tiers
• Color Accuracy: Minimum 80 CRI
• Long Life: 100,000-hour rated life (L70)
• Finish Options: Bronze, Black, or White durable powder coat

OPTI-SELECT Technology

The defining feature of this series is its OPTI-SELECT distribution switch, which allows a single fixture to serve as a Type II (side-street), Type III (roadway), or Type IV (forward-throw) luminaire. Combined with field-selectable wattage and CCT, one model can replace multiple SKUs on a project — dramatically simplifying procurement, warehousing, and installation logistics for large-scale retrofits and new construction alike.

Wattage Options & Lumen Output:

• 25W/30W/40W tier: Up to 6,000 lumens at 40W (150 LPW)
• 40W/50W/60W tier: Up to 9,000 lumens at 60W (150 LPW)
• 60W/80W/100W tier: Up to 15,000 lumens at 100W (150 LPW)

CCT Options: 3000K (warm white), 4000K (neutral white), 5000K (cool daylight)

Construction & Durability

Built for severe outdoor environments, each fixture features an IP65-rated housing with a UV-stabilized polycarbonate lens that resists yellowing over time. The heavy-duty powder coat finish — available in Bronze, Black, or White — withstands extreme climates with an operating range of -40°F to +122°F. Standard direct surface wall mounting ensures rapid deployment with easy internal access to all selector switches during installation.

Energy Efficiency & Compliance

At 150 LPW, the Opti-Select series delivers significant energy savings versus legacy HID and fluorescent wall packs. The 100,000-hour L70 rated life minimizes maintenance costs over the fixture’s lifetime. Universal 120-347V voltage compatibility makes these fixtures suitable for a wide range of North American electrical systems.

Why Choose Sylvania

LEDVANCE Sylvania’s Opti-Select series reflects decades of commercial lighting engineering — combining field-proven durability with the flexibility modern projects demand. Why Buy From Us: Bees Lighting is an authorized LEDVANCE Sylvania dealer, ensuring you receive genuine product with full manufacturer warranty support.
