Description

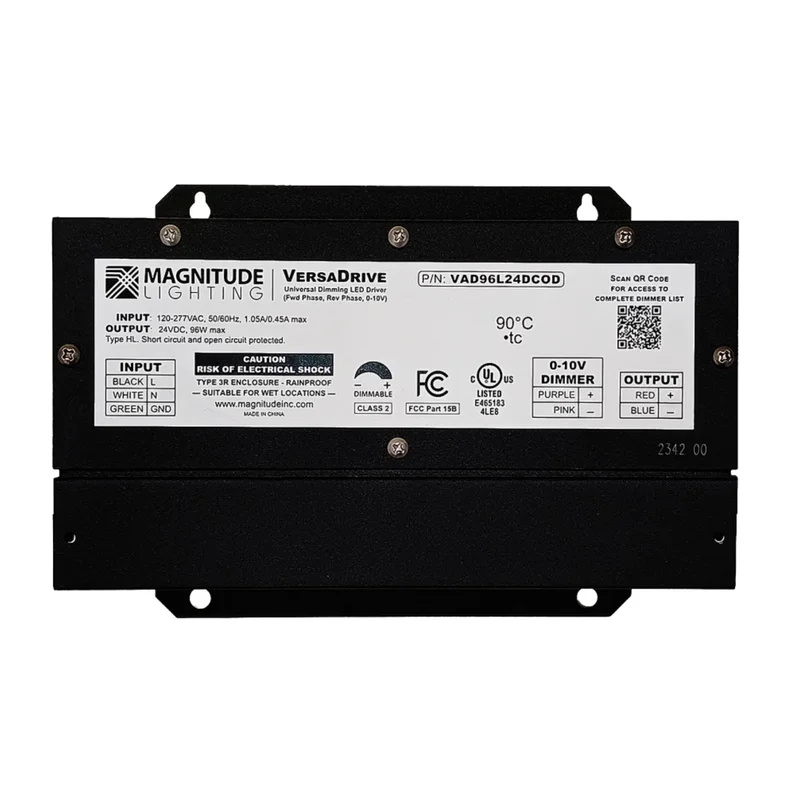

Magnitude Lighting VersaDrive 96W LED Driver — 24V DC
VAD96L24DCOD is a Magnitude Lighting VersaDrive LED Driver rated 96W with universal 120-277VAC input and 24V DC Constant Voltage output. It features 5-way universal dimming (forward phase, reverse phase, 0-10V, PWM, and potentiometer) with smooth dimming down to 1%. Built in a stamped steel, powder-coated housing with an Integrated Junction Box, it is designed for wet-location installations with IP65 and NEMA 3R enclosure ratings.
Key Features
- Power: 96W maximum load
- Input Voltage: 120-277VAC ±10%
- Output Voltage: 24VDC
- Dimming: 5-way universal dimming (forward phase, reverse phase, 0-10V, PWM, potentiometer); minimum dim level 1%
- Minimum Load for Dimming: 8W
- Dimensions: 8.1 in. L x 5.6 in. W x 1.7 in. H
- Enclosure Type: Integrated Junction Box with 1/2 in. trade size knockouts; stamped steel, powder coat finish
- IP / Enclosure Rating: IP65 / NEMA 3R
- Class Rating: Class 2
- Certifications: UL Listed; California Title 24 / JA8
Physical Design & Installation
The driver uses a stamped steel, powder-coated enclosure and includes an Integrated Junction Box with 1/2 in. trade size knockouts for streamlined conduit and line-voltage wiring. Lever style connectors are pre-installed on all wire leads to reduce installation time.
Dimming & Controls
This VersaDrive model supports multi-protocol control: phase-cut dimming on 120V systems and 0-10V dimming across 120-277V systems, plus PWM and potentiometer dimming options. Output dimming is PWM at 3.9 KHz and is designed for smooth, flicker-free performance down to 1%. For stable dimming performance, maintain at least 8W connected load.
Performance & Build
Protection features include over voltage protection, over temperature protection with auto-recovery, overload protection with current limiting, and short circuit protection with auto-recovery. The enclosure is rated IP65 and NEMA 3R for outdoor exposure, and the driver is Class 2 and UL Listed.
Typical Applications
- Outdoor LED tape and linear accent lighting
- Wet-location architectural details and facades
- Signage and perimeter lighting using 24VDC constant voltage loads
- Commercial and residential installations requiring multi-protocol dimming
